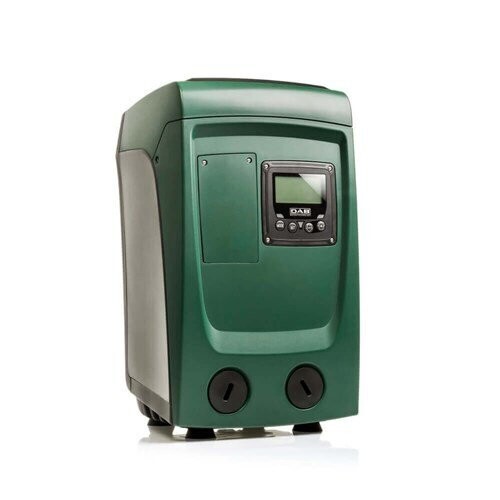

DAB Esybox Mini3 Variable Pressure System Pump

DAB Esybox Mini3 Variable Pressure System Pump

Store / Plumbing / Pumps / Domestic Pressure Pumps
$0.00
In stock
Product Details
Brand: White International

E.SYBOX MINI3 is the DAB compact automatic pressurisation system for the water supply of a single dwelling. E.SYBOX MINI3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 1 up to 5,5 bar) inside the system, and energy savings thanks to the inverter technology. Suitable for use with drinking water, in domestic systems, and in gardening applications.


E.SYBOX MINI3 is an integrated system for water pressure boosting in domestic and residential applications. Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 1 litre.


E.SYBOX MINI3 does not require any additional components for its installation.


Special Features:

Energy efficient

It can be installed in vertical or horizontal position, in a ventilated room or in a recess

Quiet operation

Saves 30% of space in comparison with the DAB Esybox

Easy maintenance

4 Year Parts & Labour Warranty


Technical Specifications
Product Type Pressure System
Brand DAB Pumps
Suitable For Clean Water
Bar 5 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 80 L/min
Hp 1.1 Hp
kPa 500 kPa
Kilo Watts 0.85 kW
Head (max) 50 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 8 Taps
Volts 240 V
Warranty (months) 48 Months
Watts 850 W

Click here for product information sheet
